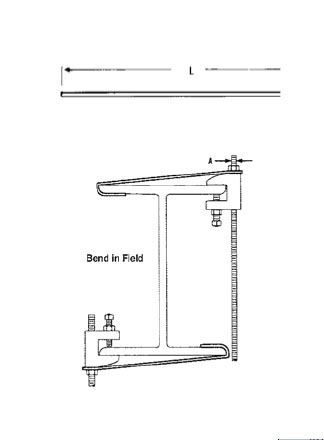

Retaining Strap – Fig. 22R

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagrammatic notes for this product.

Download Submittal
Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for use with FIG. 61 and FIG. 62.

Approvals

There are no approval options for this product.

Ordering

Specify part number, length and finish.

Notes

Add 2" minimum to flange width to determine length.

  • Rod Size A
    3/8
    1/2
    5/8
    3/4
    7/8
  • Material
    1.0
    1.0
    1.25
    1.25
    2.00
Wgt Each (lbs) for Length L
  • 4 1/2”
    0.14
    0.14
    0.17
    0.17
    0.28
  • 6”
    0.18
    0.18
    0.12
    0.22
    0.36
  • 8”
    0.26
    0.24
    0.30
    0.30
    0.48
  • 10”
    0.32
    0.32
    0.30
    0.40
    0.64
  • 12”
    0.40
    0.38
    0.47
    0.47
    0.76
  • 14”
    0.46
    0.44
    0.55
    0.55
    0.88
