Steel C-Clamp with Locknut, Domestic – Fig. 21L

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel, also available in 304 stainless steel (21LSS) and 316 stainless steel (21LSX).

Finish

Plain, electro-galvanized.

Service

Designed for attaching hanger rod to the bottom flange of a beam. Features the ribbed design for added strength. Hardened steel cup point set screw secures clamp to beam.

Approvals

UL - U.L.C. listed 3/8 and 1/2 (1/2 for 4" IPS max) with locknut only. FM approved for 3/8 only with and without locknut. Complies with Federal Specification WW-H-171-E (Type# 23), A-A-1192 A (Type# 23), Manufacturers' Standard Society SP-58 and MSS SP-69 (Type# 23)

Ordering

Specify rod size, figure number and finish.

Notes

See MSS SP-69 for proper set screw torque recommendations.

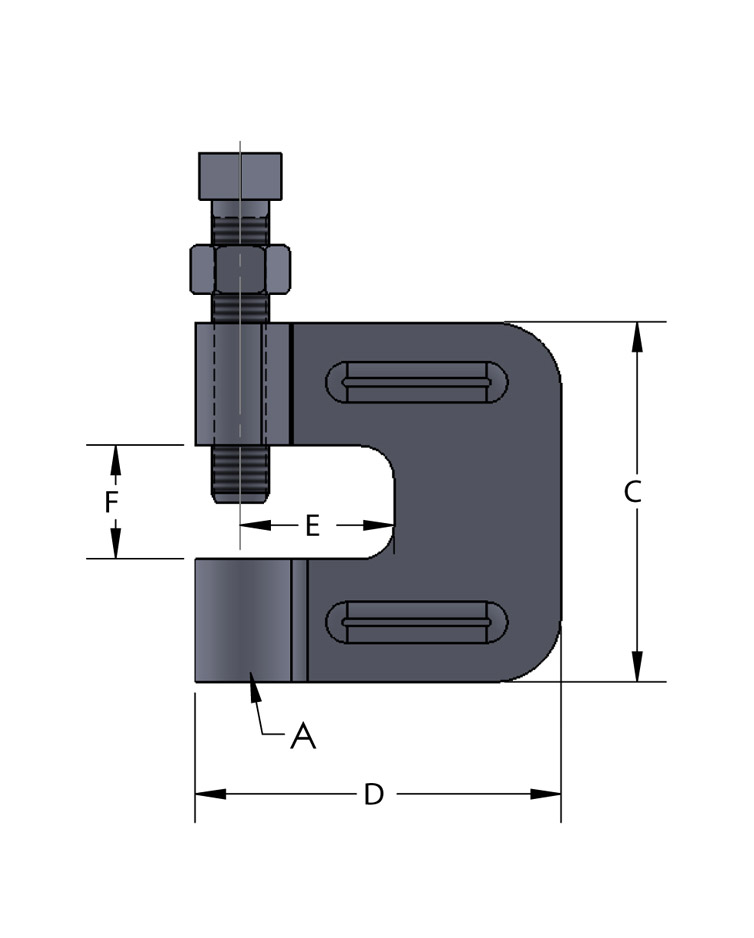

Size A

3/8-16
1/2-13
5/8-11

3/4-10
7/8-9
Set Screw

3/8-16
3/8-16
1/2-13

5/8-11
3/4-10
C

2 3/8
2 3/8
2 3/8

2 3/8
3
D

2 3/8
2 3/8
2 5/16

2 5/16
3 5/16
E

1
1
7/8

7/8
1 1/4
F

3/4
3/4
3/4

3/4
1
Max Pipe Size

4
4
5

6
8

Wgt Each (lbs)

21 (w/out Nut)

0.38
0.38
0.56

0.60
1.76
21L (w/ Nut)

0.40
0.40
0.60

0.68
1.88
Max REC Load (lbs)

400
500
500

630
1200

Steel C-Clamp with Locknut, Domestic – Fig. 21L

Size A

Set Screw

C

D

E

F

Max Pipe Size

Wgt Each (lbs)

21 (w/out Nut)

21L (w/ Nut)

Max REC Load (lbs)
