Carbon steel, also available in 304 stainless steel (21LSS) and 316 stainless steel (21LSX).
Plain, electro-galvanized.

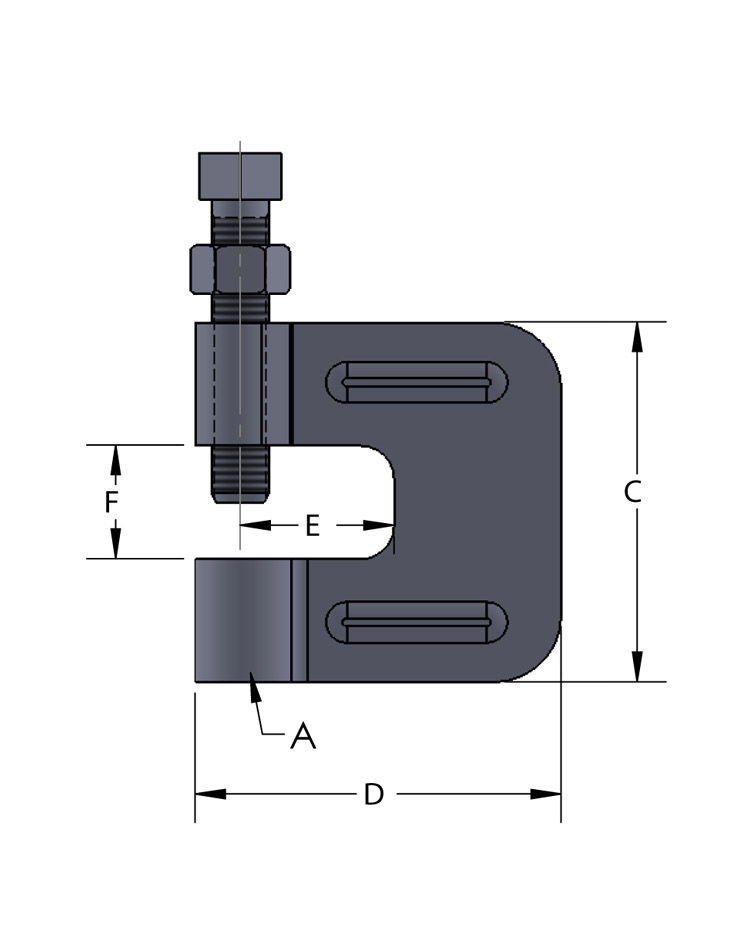

Designed for attaching hanger rod to the bottom flange of a beam. Features the ribbed design for added strength. Hardened steel cup point set screw secures clamp to beam.
UL - U.L.C. listed 3/8 and 1/2 (1/2 for 4" IPS max) with locknut only. FM approved for 3/8 only with and without locknut. Complies with Federal Specification WW-H-171-E (Type# 23), A-A-1192 A (Type# 23), Manufacturers' Standard Society SP-58 and MSS SP-69 (Type# 23)
Specify rod size, figure number and finish.
See MSS SP-69 for proper set screw torque recommendations.
