Industrial Threaded Products
Miscellaneous
-
Fig. 167
(631)665-9300

product

Pipe Covering Protection Shield – Fig. 167

For more product information please call (631) 665-9300

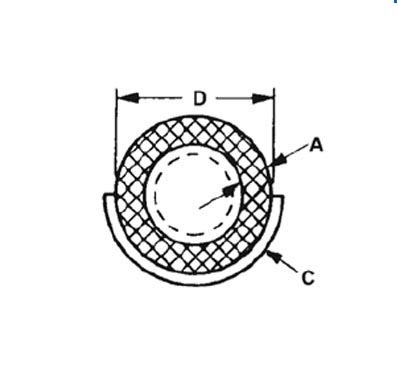

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Pre-galvanized carbon steel, also available in 304 and 316 stainless steel.

Finish

Pre-galvanized.

Service

Designed for outside of foam or fiberglass insulation on stationary pipe lines (not designed for pipe rollers) to prevent crushing of insulation without breaking the vapor barrier.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 41), A-A-1192 A (Type# 40), and MSS SP-58 and SP-69 (Type# 40).

Ordering

Specify shield size and figure number.

Notes

Also available in 304 stainless steel.

  • Size No. Shield
    0
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
  • Length
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
  • C Stock Size
    24ga
    24ga
    24ga
    18ga
    18ga
    18ga
    18ga
    18ga
    18ga
    18ga
    18ga
    18ga
    18ga
    18ga
    18ga
    16ga
    16ga
    16ga
    16ga
    16ga
    16ga
    16ga
    16ga
    16ga
    16ga
    16ga
    16ga
    16ga
    16ga
  • D Dia.
    1 7/8
    2 3/8
    2 7/8
    3 1/2
    4
    4 1/2
    5
    5 9/16
    6 5/8
    7 5/8
    8 5/8
    9 5/8
    10 3/4
    11 3/4
    12 3/4
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    26
    27
    28
  • Hanger Size
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    5
    6
    8
    8
    10
    10
    12
    12
    14
    16
    16
    18
    18
    20
    20
    24
    24
    24
    24
    30
    30
    30
  • Wgt Each (lbs)
    0.25
    0.31
    0.37
    0.90
    0.95
    1.10
    1.25
    1.40
    1.65
    1.90
    2.10
    2.35
    2.65
    2.95
    3.15
    4.45
    4.46
    4.90
    5.15
    5.50
    5.70
    6.35
    6.45
    6.60
    7.00
    7.85
    7.90
    8.05
    8.60
  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
    10
    12
    14
    16
    18
    20
    24
A – Insulation Thickness
  • 1/2
    0
    1
    1
    2
    2
    3
    4
    5
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
  • 3/4
    1
    1
    2
    3
    3
    4
    5
    6
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
  • 1
    -
    2
    3
    3
    4
    5
    6
    7
    8
    8
    9
    10
    14
    16
    18
    19
    21
    23
    25
    28
  • 1 1/2
    -
    4
    5
    6
    6
    7
    7
    8
    9
    9
    10
    13
    15
    17
    19
    20
    22
    24
    26
    29
  • 2
    -
    6
    7
    7
    7
    8
    8
    9
    10
    10
    13
    14
    16
    18
    20
    21
    23
    25
    27
    30
  • Tube Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
A – Insulation Thickness
  • 1/2
    0
    0
    1
    1
    2
    3
    4
    5
    6
    7
    8
    9
  • 3/4
    1
    1
    2
    2
    3
    4
    5
    6
    7
    7
    8
    9
  • 1
    2
    2
    3
    3
    3
    4
    5
    6
    7
    8
    9
    10
  • 1 1/2
    4
    4
    4
    5
    5
    6
    7
    8
    8
    9
    10
    13
  • 2
    5
    6
    6
    7
    7
    8
    8
    9
    9
    10
    13
    14
