Return Line Angle – Fig. 152

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain.

Service

Designed to enable the field mechanic to obtain different distances from wall to center of pipe line by turning the angle to distance required. They are made in light and heavy material and will support pipes 2, 3 or 4 inches from wall to center of pipe.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 21), A-A-1192 A (Type# 21), and MSS SP-58 and SP-69 (Type# 21).

Ordering

Specify size number, figure number and finish.

Notes

There are no notes for this product.

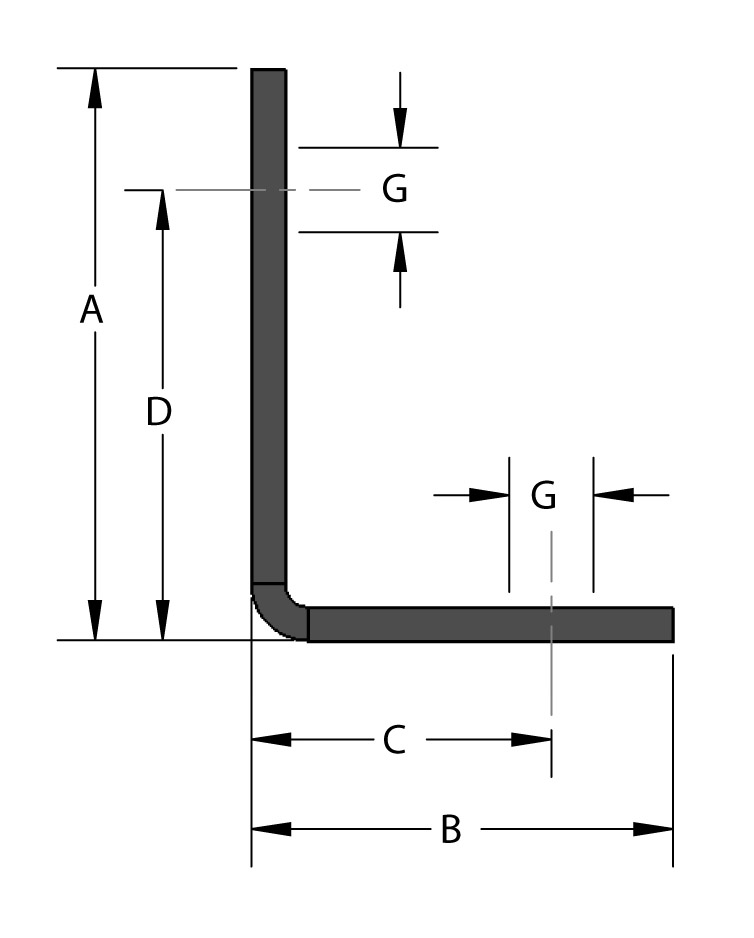

Size No.

1
2

3
4

5
6
Material

4ga
4ga

3/8
3/8

4ga
3/8
A

3 13/16
4 13/16

3 7/8
4 7/8

6 15/16
6 15/16
B

2 13/16
4 13/16

3 7/8
4 7/8

6 15/16
6 15/16
C

2
3

2
3

4
4
D

3
4

3
4

6
6
G

9/16
9/16

9/16
9/16

9/16
9/16
Wgt Each (lbs)

0.425
0.585

0.870
1.175

0.825
1.650
Max Rec Load (lbs)

180
180

390
390

180
190

Return Line Angle – Fig. 152

Size No.

Material

A

B

C

D

G

Wgt Each (lbs)

Max Rec Load (lbs)
