Return Line Straight J-Hook – Fig. 145

For more product information please call (631) 665-9300

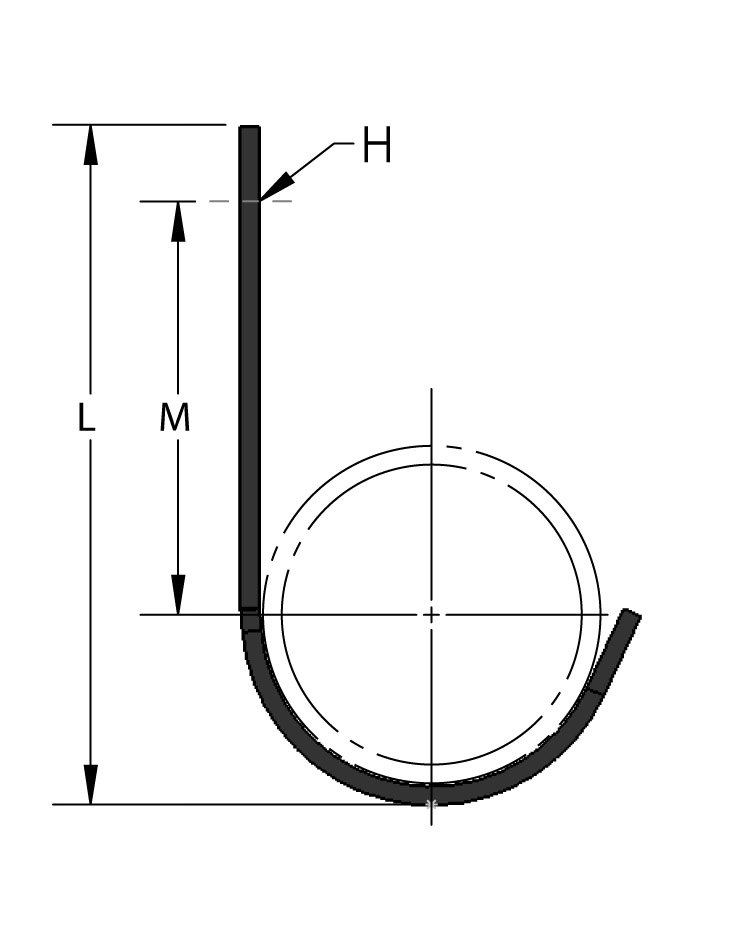

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for supporting light pipe loads next to wall.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size, figure number and finish.

Notes

There are no notes for this product.

Pipe Size

1/2
3/4
1

1 1/4
1 1/2
2

2 1/2
3
3 1/2

4
Pipe OD

0.840
1.050
1.315

1.660
1.900
2.375

2.875
3.500
4.000

4.500
Material Size

1 1/4 x 1/4
1 1/4 x 1/4
1 1/4 x 1/4

1 1/4 x 1/4
1 1/2 x 1/4
1 1/2 x 1/4

1 1/2 x 1/4
1 1/2 x 1/4
1 1/2 x 1/4

1 1/2 x 1/4
H

9/16
9/16
9/16

9/16
9/16
9/16

9/16
9/16
9/16

9/16
L

6 3/8
6 1/2
6 11/16

6 13/16
6 15/16
7 3/16

7 7/16
7 3/4
8

8 1/4
M

5
5
5

5
5
5

5
5
5

5
Wgt Each (lbs)

0.55
0.59
0.82

0.84
1.09
1.15

1.23
1.39
1.48

1.58
Max Rec Load (lbs)

350
350
350

350
600
600

600
600
600

600
